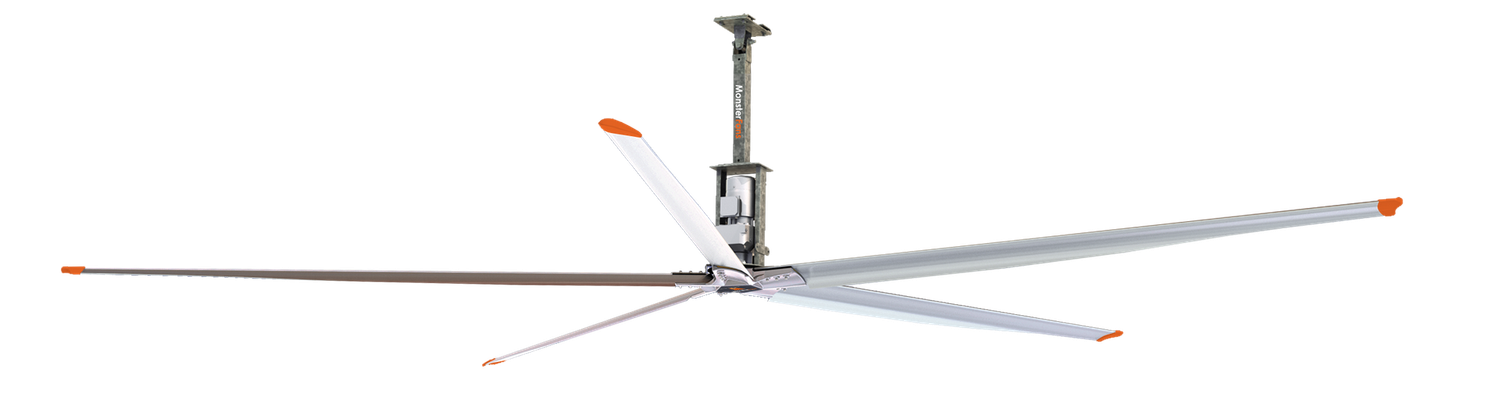

MonsterFans GD Series 16FT Fan Kit –230-1 ph,230V-3ph & 460v 3ph w/ VFD & Mounting

Introducing MonsterFans, the epitome of HVLS technology for medium to large spaces. Harnessing Monster Strength with its Geared-drive Helical Inline Reducer motor, it ensures high efficiency, optimal air circulation, and unparalleled performance. With anodized aluminum blades, it delivers Monster Air Movement, creating a comfortable environment with ease. The fan operates very quietly, ensuring a peaceful ambiance, while providing humidity control for enhanced comfort and productivity. Embrace the power of MonsterFans - the market leader in cost-effective, top-engineered HVLS technology, equipped with Monster Wings for the ultimate air-moving experience.

Kit Includes:

MonsterFans GD Series 16FT, Geared Motor, 230-1 ph,230V-3ph & 460v 3ph IP55 Rating

MonsterFans Drive, VFD 230-1 ph,230V-3ph & 460v 3ph IP66 NEMA 4X Rating

Smart Controller Single Fan

MonsterFans GD Series Primary Mounting Kit, 1FT

Features:

• Airfoil Sizes 8’ to 24’ Integrate into any medium to large space.

• Whisper Quiet operation for optimal comfort

• Five Airfoil blades w/ unique angled wingspan for effective air movement

• Protection against dust, water, vapors for indoor and outdoor use

Warranty:

• Lifetime Warranty on blades, hub, and mounting system

• 5 Year warranty on motor, gearbox, control panel

Product Features:

• Motor Shipping Dimensions: 30” x 31” x 32”

• Motor Shipping Weight: ~284lbs

• Blade Shipping Dimensions: 11” x 11.5” x 96”

• Blade Shipping Weight: ~134lbs

• Motor Type: 1HP Geared Helical Inline Reducer Motor

• Rating: Fan (IP55) / VFD (IP66) Nema 4X.

• Number of Foils: 5 • Effective Coverage Span: 140ft diameter
